STAINLESS STEEL PUMPS  -  PPT 20 SERIES
PRODUCTS
CONTACT US
Phone:..... (0224) 2437282 PBX
Fax:......... (0224) 2435756
Address:.. O.S.B. 75. Yıl Bulvarı                  Demirciler Sitesi G Blok                  No:17/18
                 Nilüfer - BURSA
GENERAL SPECIFICATIONS
• Inlet and outlet: NW 80 - NW 65
• The production of entire pump is stainless steel
  ( AISI 304 or AISI 316 ).

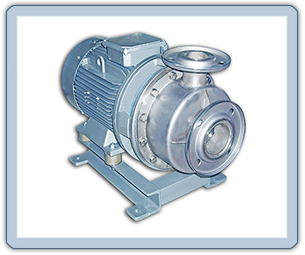

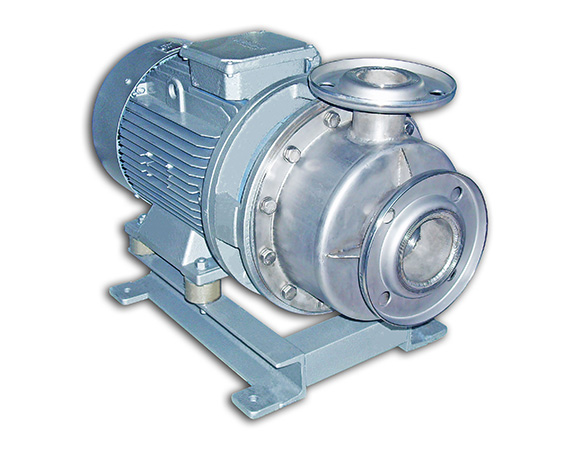

• End suction monoblock centrifugal pump with open or closed
  impeller.
• Pump shaft bearing is covered with the electric motor bearings.
• The pump rotation is clockwise when you look from behind of   the pump.
• The suction is 7 meters.
PERFORMANCE CURVE
PUMP DIMENSIONS


APPLICATION FIELDS
• Food industry.
• Textile industry.
• Circulation.
• Boosters.
• Comercial dishwashers.
• Industrial washing machines.
• Transfer of sea water.
• Agricultural fertilizer plants
• Pressurized water supply.
• Solar systems.

MODEL POWER HEAD MAX. CAPACITY MAX. WATER PROOFING SHAFT IMPELLER PUMP BODY INLET OUTLET OPERATING TEMP.
(Kw) (m/h) (m³/h) (inch)
    PPT 20 15 51 126 mechanical seal 304 stainless steel 304 stainless steel 304 stainless steel NW 80
NW 65
0°C +100°C
   Options:
•  Pump body: AISI 316 stainless steel
•  Impeller: AISI 316 stainless steel
•  Shaft: AISI 316 stainless steel
